INDUSTRIAL PRO SENSOR

Senzor Industrial Pro

Industrial temperature and relative humidity sensor in a box with sensors in a protective extender and IP40 protection.

Technical specifications

Parameter Value
Dimension64 mm (94 mm with flange) x 58 mm x 35 mm
Weight115 g
Transmission technologyIQRF
TemperatureThe sensor can be used for measurements in the temperature range: -20 °C to 70 °C
(for recommendations, see "Battery life")
Relative humidity0 - 100 % (without icing and condensation)
Rangetens of meters in buildings (depending on the environment and obstacles), up to 400 m in open space,
many times more than the Wi-Fi signal.
Battery lifeWe provide a 7-year battery warranty provided that:
✓ The sensor has been used in the temperature range 0 °C to 45 °C at all times
IP protectionIP40
Power supplyAA 3,6 V, 2400 mAh battery
RF bandIQRF 868 MHz (optionally 916 MHz)

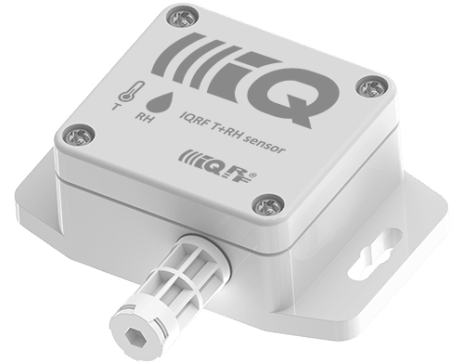

Compact design

The sensor is delivered in an industrial box with a hole covered with a semipermeable membrane.

Great reach

Up to 400 m in open space, tens of meters in buildings. Compared to the Wi-Fi signal, it is many times more.

Low consumption

Devices using IQRF wireless technology can operate in a variety of operating modes, resulting in low power consumption and long life.

Freedom with wireless

Thanks to the battery design, you will save the installation of long and expensive cables, you will not have to make any interventions in the plaster or install the cover strips.

Precise measurement

The temperature sensor is factory calibrated, so you will get comparable and correct temperature measurement results from different sensors.

10 years on battery

Observe operating conditions to ensure optimal battery and sensor life. We guarantee battery operation for 7 years if they are observed. It will serve you longer, for more than 10 years.
